MIPI RFFE Trigger (MIPI RF Front-End Control Interface)

MIPI RFFE trigger supports Error Trigger (Start / End of frame, Bus Park Cycle, Parity / Frame Error) and Clause Trigger pattern match on Command type, Address, and Data.

See Settings and Clause Trigger.

Trigger Settings

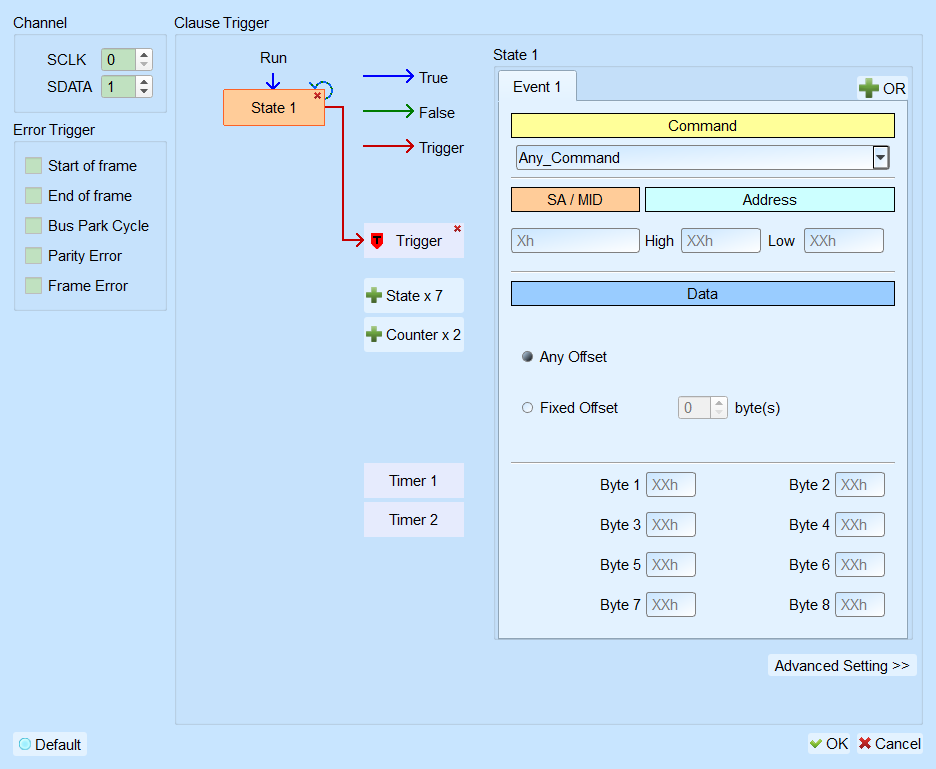

MIPI RFFE Trigger

MIPI RFFE Trigger Settings
  • Channel: Assign SCLK and SDATA.
  • Error Trigger: Start of frame / End of frame / Bus Park Cycle / Parity Error / Frame Error. Field enabled (Enable) when selected. Default: all cleared.
  • Clause Trigger: See Clause Trigger.
  • State: Per-level conditions; set Command type and enter Address / Data as a data pattern; XXh / X = Don't care.
