SENT Trigger (Single Edge Nibble Transmission)

SENT trigger supports Simple Trigger (Enhanced/Fast/Short Start), Error Trigger (CRC/Pause/Sync), or Clause Trigger for Slow/Fast Channel data patterns.

See Settings and Clause Trigger.

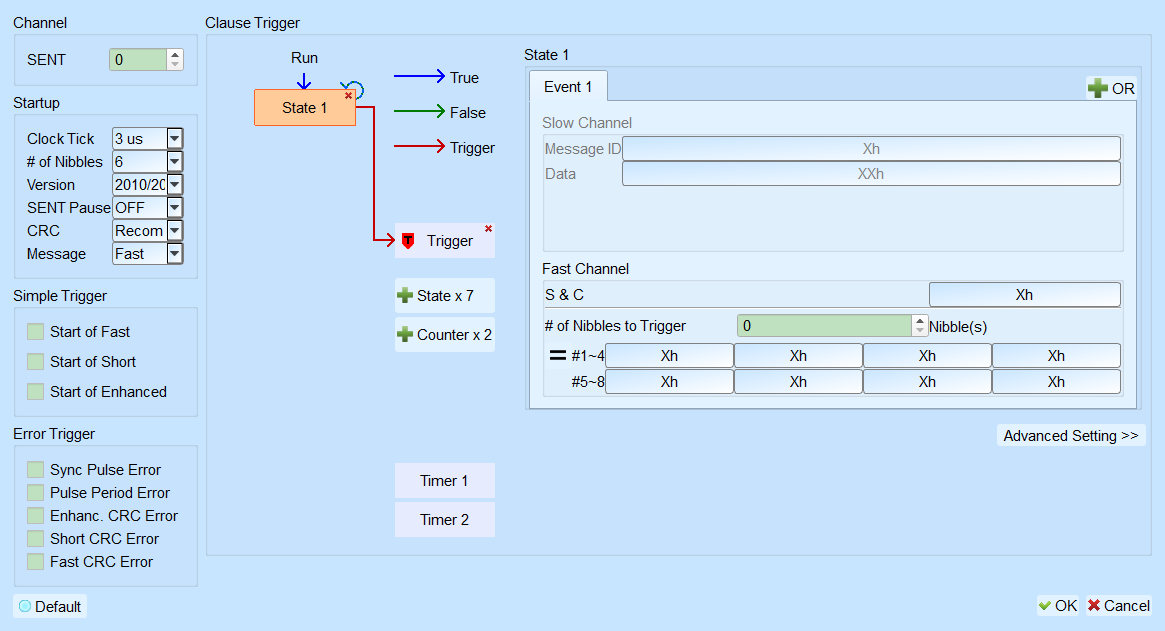

Trigger Settings

SENT Trigger

SENT Trigger
  • Channel: SENT channel. AUX field enabled (Enable) when checked. Default: cleared.
  • Startup: Tick/Nibble count/SENT version/CRC version/Pause/Message Format. Defaults: Tick index 0; Nibble count index 5; SENT version index 1; CRC version index 1; Pause index 0; Message Format index 0.
  • Simple Trigger: Enhanced/Fast/Short Start. Field enabled (Enable) when checked. Default all cleared.
  • Error Trigger: Enhanced/Fast/Short CRC, Pause, Sync Error. Field enabled (Enable) when checked. Default all cleared.
  • Clause Trigger: See Clause Trigger.
  • State: Slow Channel Message ID/Data or Fast Channel fields. Slow Channel applies when Message is Short/Enhance; Fast Channel when Message is Fast. Unused fields use X/XXh.
