LIN Trigger (Local Interconnect Network)

LIN trigger supports frame events, checksum/error conditions, and Clause Trigger patterns on ID, Parity, Data Length, and Data (X / XXh = Don't care). LIN 2.2 can specify Data Length.

Wrong Data Rate or checksum mode may miss triggers. See Settings and Clause Trigger.

Trigger Settings

LIN Trigger

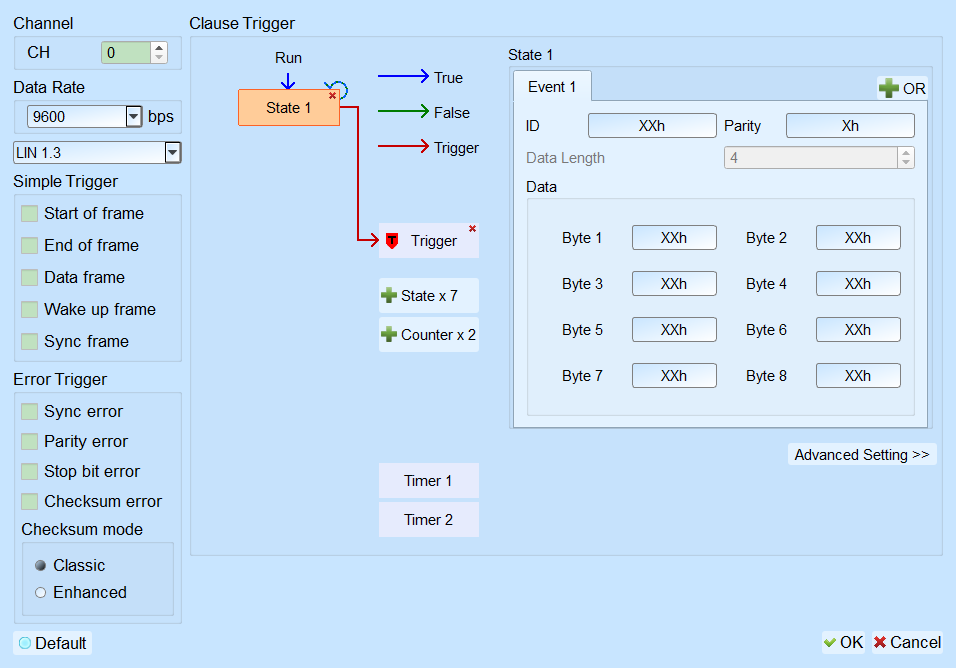

LIN Trigger Settings
  • Channel: Assign the LIN channel.
  • Data Rate: Default: 9600.
  • Checksum mode: Default: Classic.
  • Simple Trigger: Frame events (Start / End / Data / WakeUp / Sync, etc.). Default: all cleared.
  • Error Trigger: Checksum / Sync / Stop / Parity errors. Default: all cleared.
  • Clause Trigger: See Clause Trigger.
  • State: Enter ID, Parity, Data Length, Data, or leave X. LIN 2.2 can set Data Length.
