10BASE-T1S Trigger

10BASE-T1S trigger supports frame events / error checks and Clause Trigger pattern match on Destination / Source Address, Ethertype / Length, and Data. The physical layer is a single-pair differential link.

TravelBus provides dedicated 10BASE-T1 channels; for LA, verify the Data wiring. See Settings for channel prefixes and Clause Trigger for clause flow.

Trigger Settings

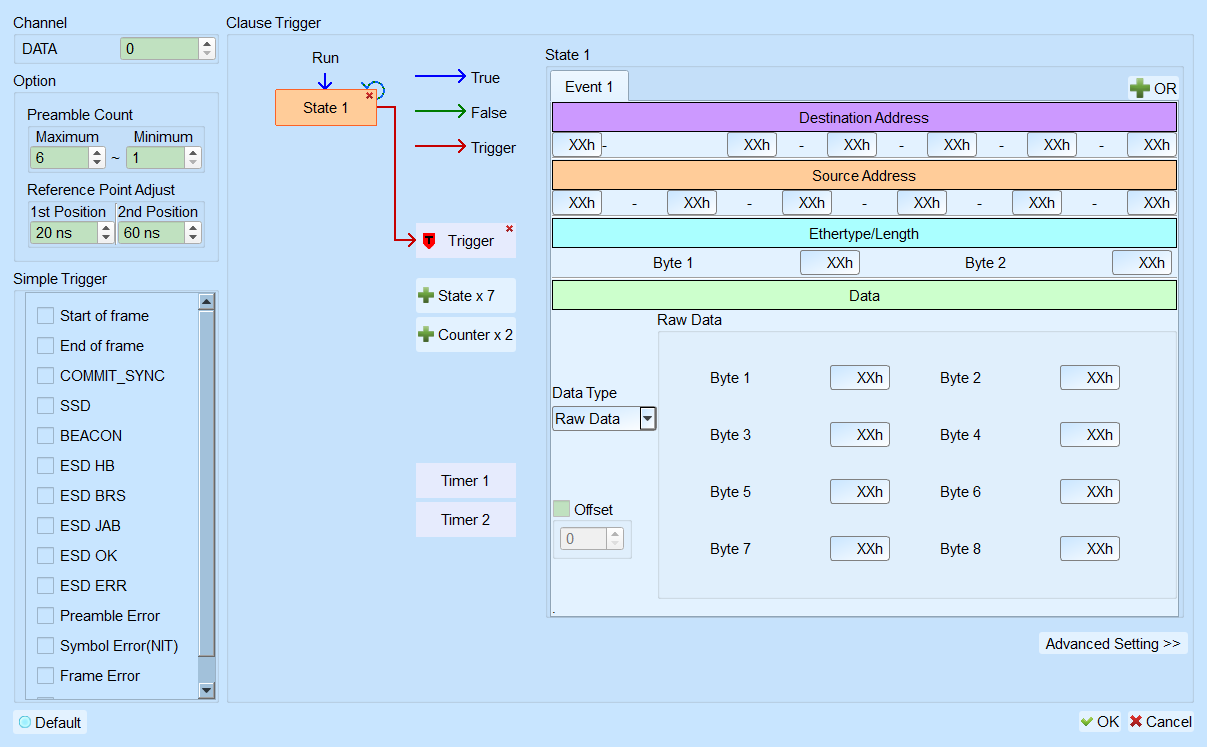

10BASE-T1S Trigger

10BASE-T1S Trigger (LA)

10BASE-T1S Trigger TravelBus

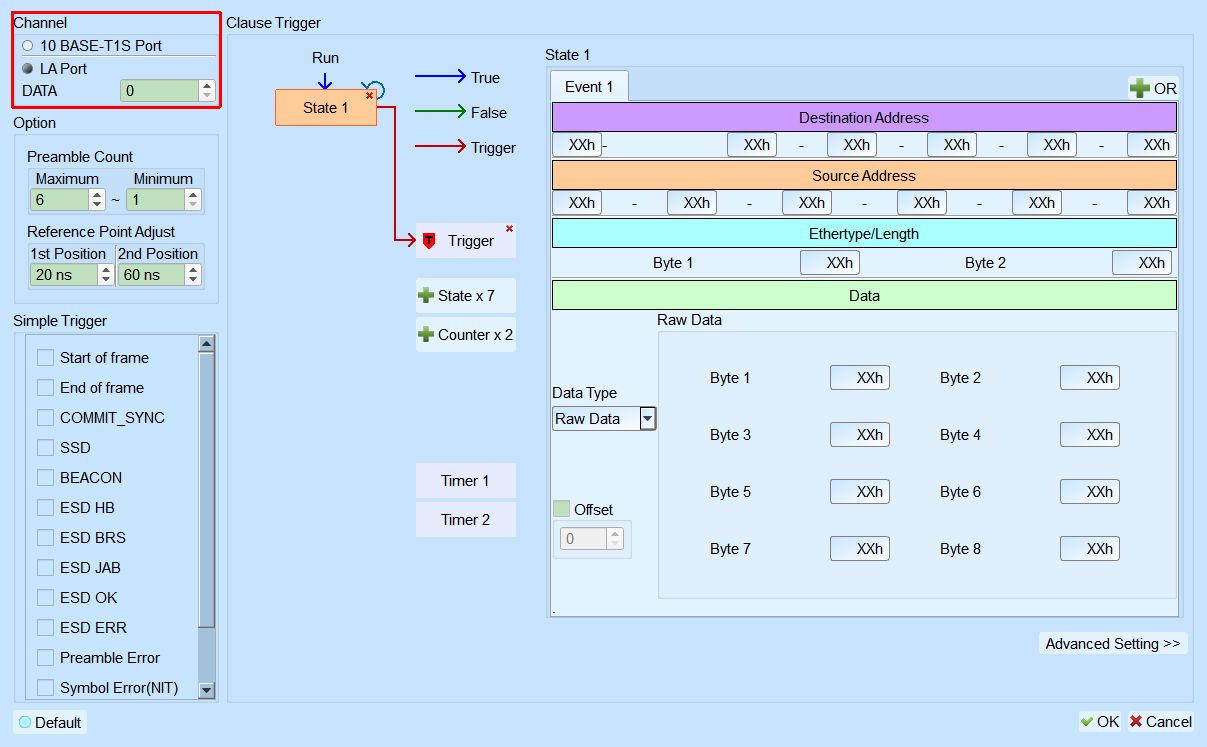

10BASE-T1S Trigger (TravelBus; extra channel source)

Because TravelBus includes special 10BASE-T1 channels, the trigger dialog adds an extra channel-source option.

  • Channel: Dedicated port (TravelBus) or LA Data channelLA port.
  • Preamble Count: Lower / upper preamble count. Default: lower 1, upper 6.
  • Reference Point Adjust: Logic-level decision reference (1st / 2nd position). Default: 20 / 60.
  • Simple Trigger: Start / End / Beacon / Commit, ESD (BRS / ERR / HB / OK / JAB), Preamble Error / SSD, Frame / CRC / Symbol Error. Default: all cleared.
  • Clause Trigger: See Clause Trigger.
  • State: Enter Destination Address, Source Address, Ethertype / Length, and Data as a data pattern; XXh = Don't care.
    • Address / Ethertype / Data: Default all XXh (Data up to 8 bytes).
    • Data Type: Default index 0 (normal Data).
    • Offset: Checking Fixed Offset enables (Enable) the offset field. Default: cleared, offset 0.
