MII/RMII/RGMII/GMII Trigger (Media Independent Interface)

MII-family trigger supports frame start / end, errors, Collision, and Clause Trigger pattern match on Destination / Source Address, Ethertype, and Data.

BusFinder / LA support MII / RMII / RGMII / GMII; TravelLogic / MSO do not support GMII, and RGMII requires sample rate ≥ 1 GHz. See Settings and Clause Trigger.

Trigger Settings

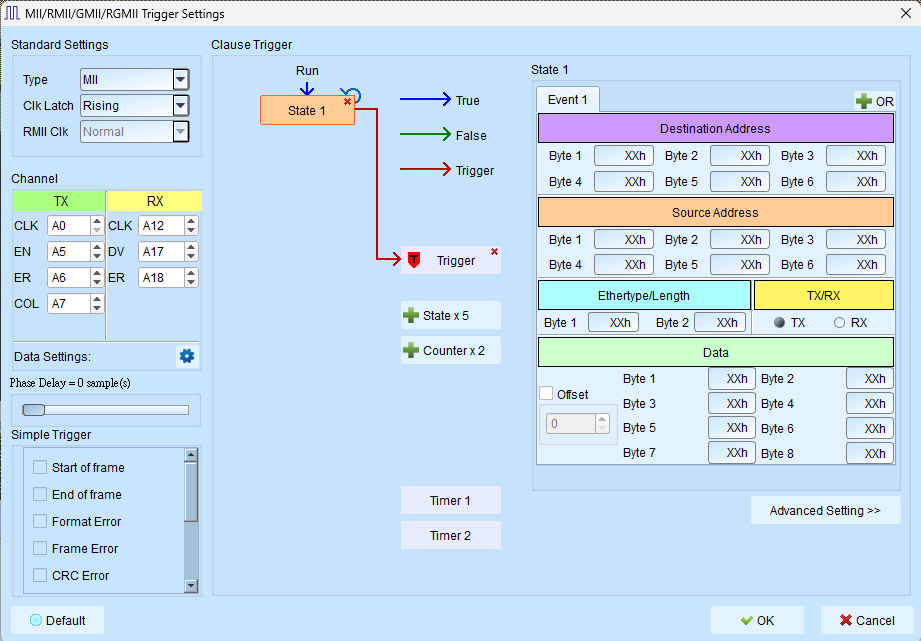

MII Trigger BusFinder/LA

MII Trigger (BusFinder / LA)

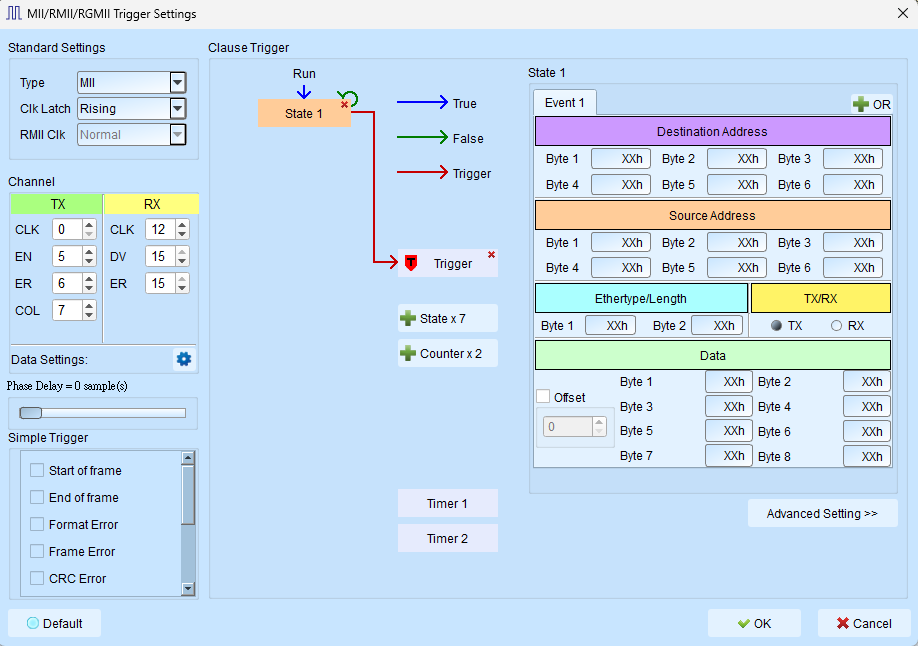

MII Trigger TravelLogic/MSO

MII Trigger (TravelLogic / MSO)
  • Standard / type: MII / RMII / RGMII / GMII (by product). Default: MII.
  • Clk Latch: Latch on rising or falling CLK. Default index 0 (Rising / High active). Disabled (Disable) for RGMII.
  • RMII Clk: Enabled (Enable) only when type is RMII.
  • Channel: Assign TX / RX control and Data pins (channel indices omitted); Data Setting opens a popup for Data pins.
  • Phase Delay: In samples. Default: 0.
  • Simple Trigger: Start / End, Error Pin, Frame / CRC / Format Error, Carrier Extend (and Error), False Indication, Collision. Default: all cleared.
  • Clause Trigger: See Clause Trigger.
  • State: Enter Destination / Source Address, Ethertype, and Data as a data pattern; XXh = Don't care. Choose TX or RX.
    • TX / RX: Default TX.
    • Address / Ethertype / Data: Default all XXh (Data up to 8 bytes).
    • Offset: Checking Fixed Offset enables (Enable) the offset. Default: cleared, offset 0.
