NAND Flash Trigger

NAND Flash trigger supports channel and data-width setup, Startup Mode, tREA / tDQSQ, commands accepted during busy, Busy time check, and Clause Trigger pattern match on Address / Command / Data.

See Settings and Clause Trigger.

Trigger Settings

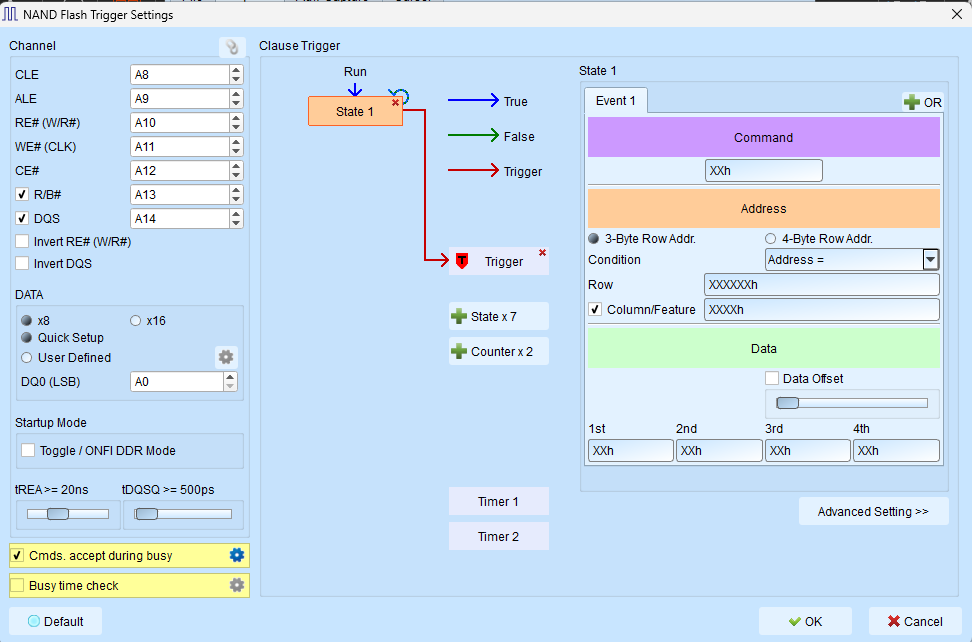

NAND Flash Trigger

NAND Flash Trigger Settings
  • Channel: CLE, ALE, RE, WE, CE, R/B, DQS; optional Reverse RE / Reverse DQSchecked; Reverse RE / Reverse DQS cleared.
  • DATA: x8 / x16. Default: x8.
    • Quick Setup: Set LSB only; software assigns the rest (e.g. LSB = B0 → MSB = B7; LSB = B7 → MSB = B14). Default: checked.
    • User Defined: Open the popup to assign each data bit manually.

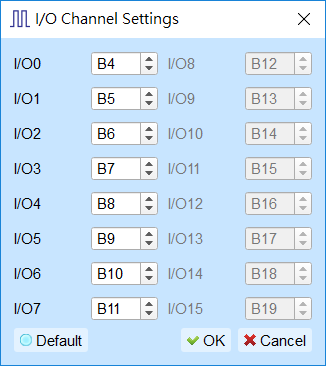

Manual DATA channels

DATA user-defined popup
  • Startup Mode: For DDR Command / Address / Data, check DQS and Toggle / ONFI DDR Mode; ignore for SDR. Default: Init DDR cleared.
  • tREA / tDQSQ: Read data is sampled after an edge delay—tREA in SDR, tDQSQ in DDR. Default: tREA 20 ns (slider 200); tDQSQ 500 ps (slider 5).
  • Commands accepted during busy: Commands that may still trigger while Busy time check is active. Default: checked; commands 70h / FFh / 78h / 7Bh (others XXh). Leave blank to ignore commands during busy.
  • Busy time check: Check and open Setting…. Default: cleared. Up to 6 groups, 4 commands each; fires when Busy time ≥ set value.
  • Clause Trigger: See Clause Trigger.
  • State: Enter Address, Command, Data as a data pattern; XXh / X = Don't care.

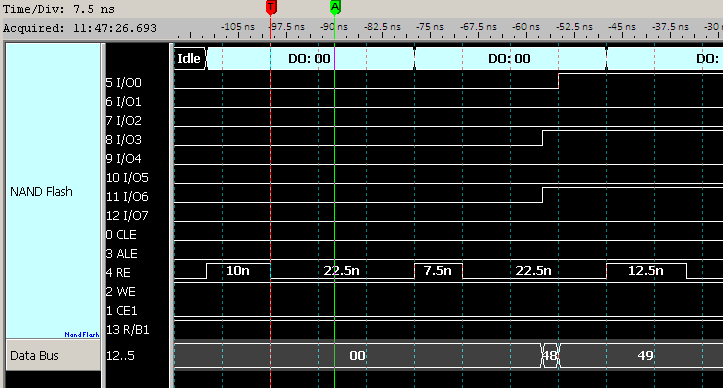

Time between cursors T and A is tREA:

tREA

tREA illustration

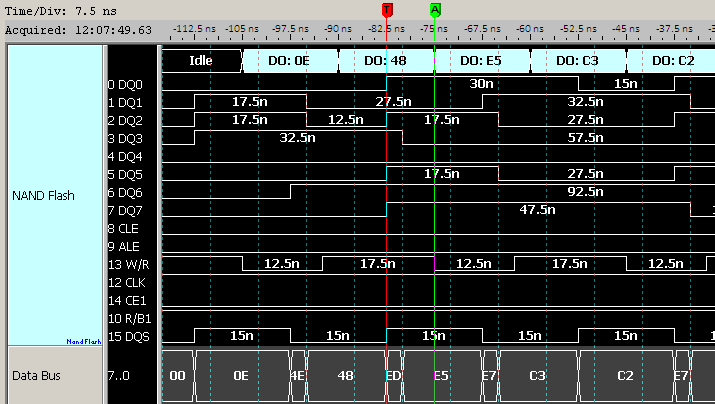

Time between cursors T and A is tDQSQ:

tDQSQ

tDQSQ illustration

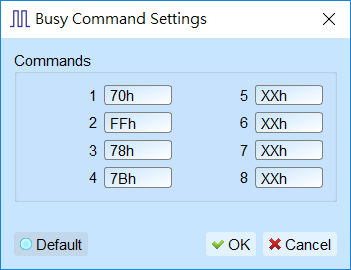

Commands accepted during busy popup:

Commands during busy

Commands accepted during busy popup

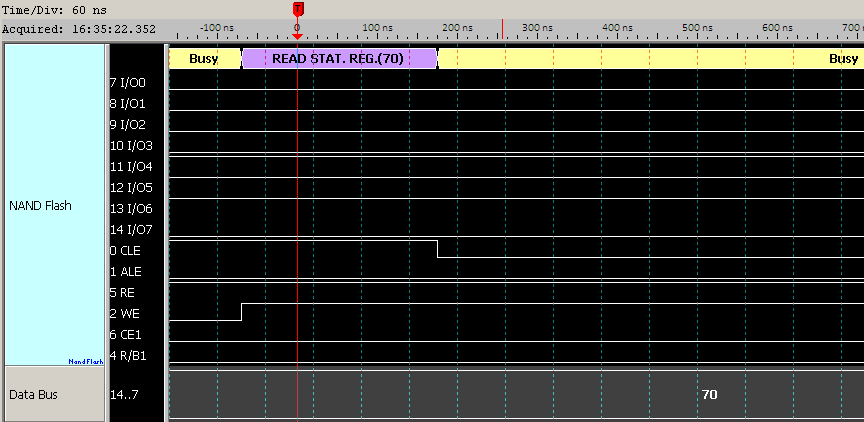

Trigger on Command 70h while busy:

Busy Command 70h

Trigger on Command 70h during busy

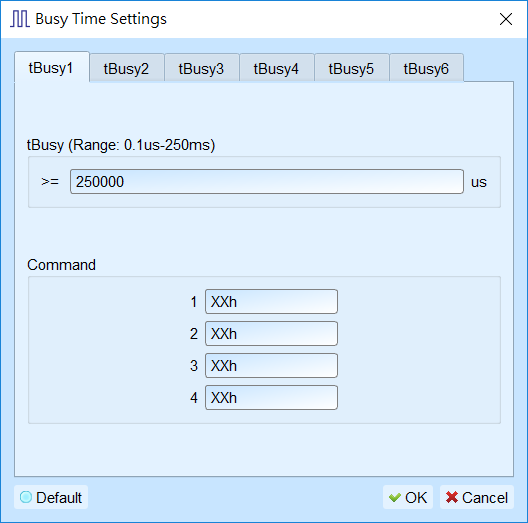

Busy time check popup (example: Command 10h and Busy time ≥ 25 µs):

Busy time check

Busy time check popup

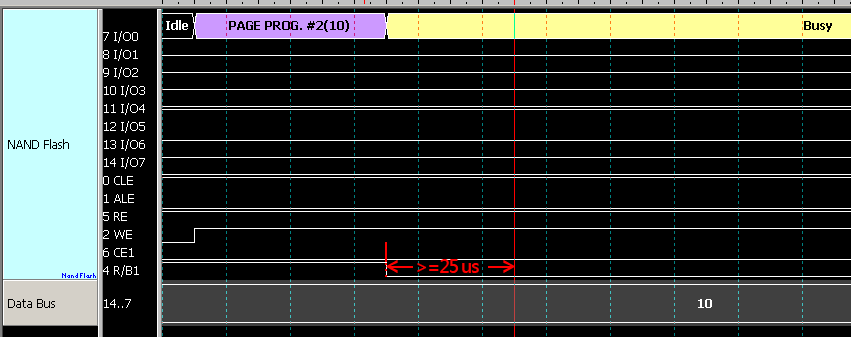

Busy time trigger result

Trigger at Command 10h with Busy time ≥ 25 µs
